SYSC 3010
2017-10-23
Connor MacKenzie
Theo Hronowsky
Zein Hajj-Ali
What if your bathroom mirror was more than just a mirror? Tired of wasting precious time catching up on social media and world updates while getting ready for your busy day? The Connected Mirror is a media platform loaded with features making those early morning wake ups a bit more fun. The Connected Mirror is an optimistic vision of the future which involves the use of screens and data everywhere, ready to push information to the user at a moment's notice while acting as a traditional mirror simultaneously. The Connected Mirror allows users to organize themselves and access any information they need all in one space for an easier and more efficient start to one's day. With access to calendar, reminders, news, weather, traffic and much more, the Connected Mirror will improve your day by giving you a heads-up of what’s planned ahead. Connected Mirror is your very own personalized smart mirror focused entirely on increasing your productivity. With the Connected Mirror you’ll manage access to the following without having to find your smartphone in the morning:
● Calendar
● Clock
● Reminders for events
● Newsfeed
● Complements and inspiring quotes
● Voice control
● Stock report
● Weather
● Traffic
Connected Mirror helps keeps you connected, in control, and confident every morning. Plus, it makes you ridiculously good looking.
2.1 Design Architecture To create a testable and functionable Connected Mirror, the following items will be used to fabricate the product:
● Arduino Uno
● 2 Raspberry Pi
● Prototyping Board
● Microphone
● Ultrasonic Sensor
● LCD display ● 2 Way Mirror
● Led Lights
● Wood Frame
The layout of the test unit is represented by Figure 1, below, and the implementation of the hardware will look similar to that of Figure 2.

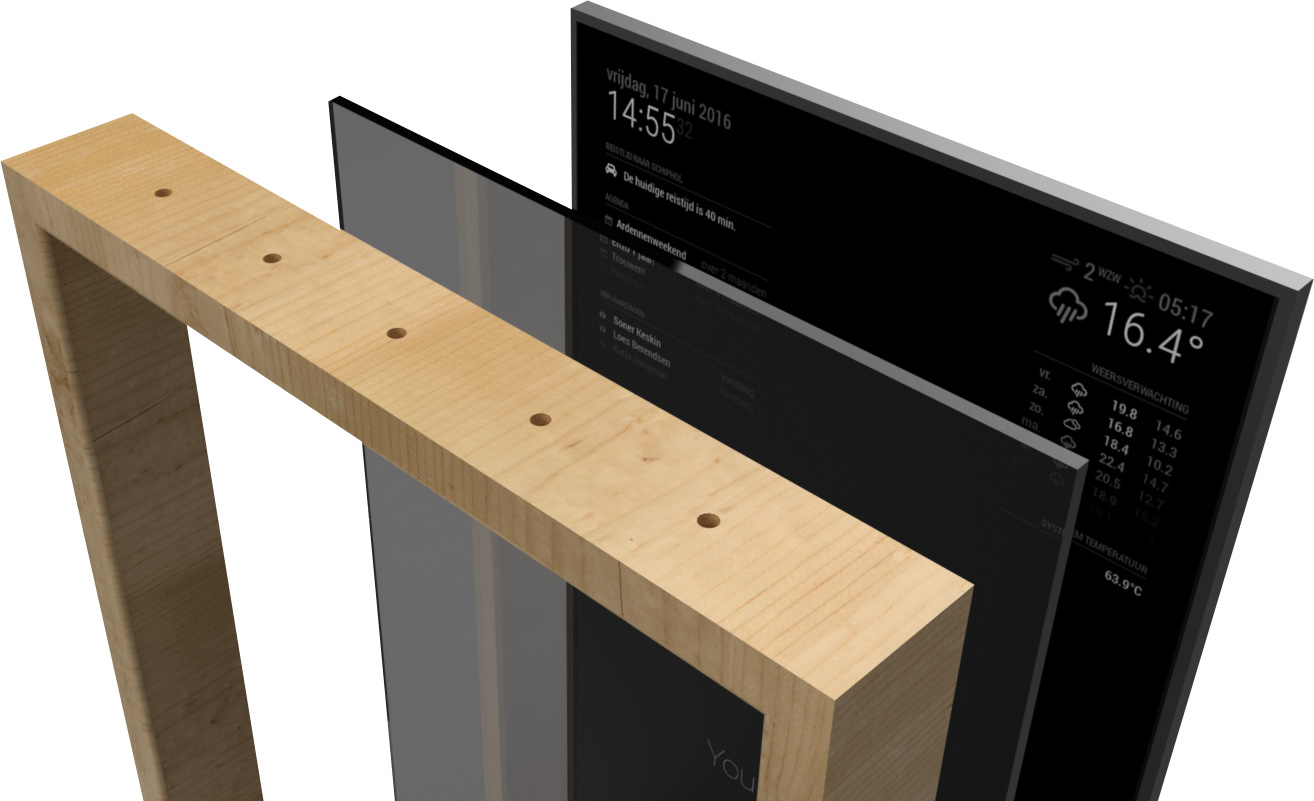

Figure 1 : General layout of the Connected Mirror [Michael Teeuw, MirrorMirror ^2 , 2016]
Figure 2 : Hardware installed into frame [Dylan Pierce, Building MirrorMirror , 2015]
Figure 1 shows how the frame of the Connected Mirror will house the two way mirror and the LCD display behind it. Figure 2 shows a similar project(not ours) that is also an interpretation of a smart mirror. It shows how the Raspberry Pi and Arduino will be connected to the Mirror. Behind the mirror, the frame will contain the LCD display, the two Raspberry Pi, the arduino, as well as the sensors and any necessary wiring used to connect the system. The two sensors, the ultrasonic sensor and the microphone will be positioned on the outside of the mirror in order for the devices to work properly. Led lights will surround the perimeter of the frame and be controlled by an android app. 2.2 Systems Architecture Deployment Diagram Provide below, Figure 3, is the systems architecture deployment diagram for the Connected Mirror. It shows the relationships between the devices used and how they work and communicate together in the system.

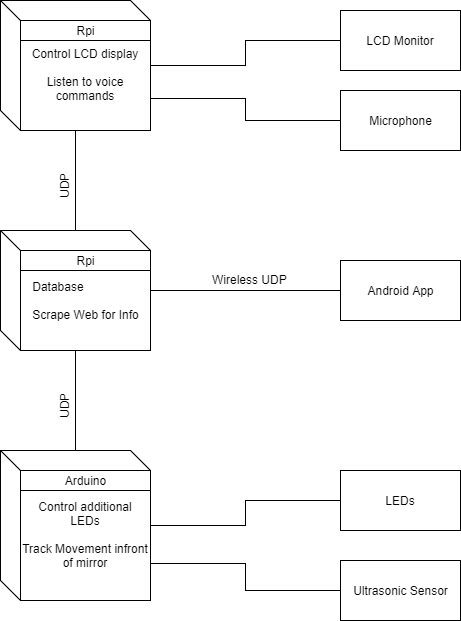

Figure 3: System Deployment Diagram for the Connected Mirror
The first Raspberry Pi will be used to control the LCD display. It will display information gathered from the second Raspberry Pi. It will update the graphical user interface on the LCD to display useful information to the user. It will also listen to the user via a microphone to receive then execute commands based on the input by the user. The second Raspberry Pi will access the Web and provide the required information to the rest of the system. It will store an SQL database of information that can be accessed at any time. Additionally, it will communicate with the android app and sent commands to the Arduino to control the LED lighting.
The Arduino will control the hardware side of the system. It will control the LED lighting used for the mirror as well as use ultrasonic sensors to track movement in front of the mirror. The ultrasonic sensor will be in charge of turning on the mirror. The android application is in charge of controlling the LED lights mounted to the front of the frame. It will be able to manually change the color of the LEDS at any point. The three devices will be connected to each other making up the system that is the Connected Mirror. 2.3 Systems Sequence Diagrams In order to explain the systems design and functionality further, two general sequence diagrams are included on the following page. Figure 4 represents the sequence in which the system follows in order to wake up the mirror. Figure 5 represents the sequence of how the system handles a voice input via the user.

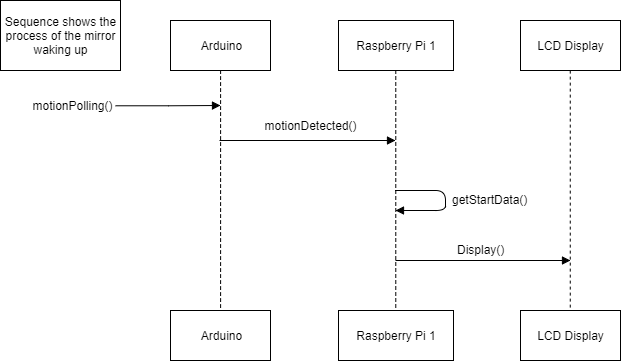

Figure 4 : Sequence Diagram for System Wake Up
The Connected Mirror system wakes up and begins once the ultrasonic sensor detects movement in front of it. The ultrasonic sensor is connected to the Arduino which is constantly polling for a motion. Once the Arduino detects a movement, it sends a signal to the Raspberry Pi 1 which then gathers all data needed for start up. This data is then pushed to the LCD for the user to view.

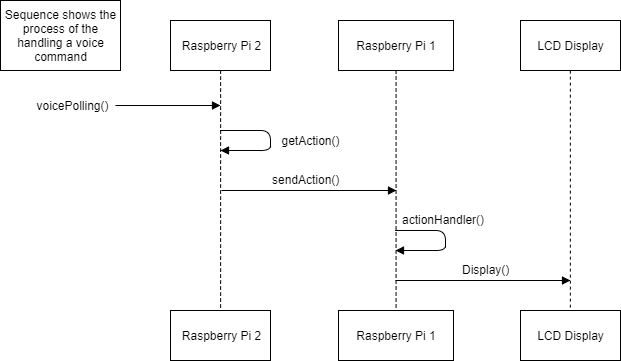

Figure 5 : Sequence Diagram for Handling a Voice Command
The sequence in which the Connected Mirror handles a voice command begins with the Raspberry Pi 2 polling the microphone which is connected to the 2nd Raspberry Pi. The 2nd Raspberry Pi determines the suitable action that matches the voice command and sends it to the 1st Raspberry Pi. Then, an actionHandler is used to determine what the action will do. Finally, the determined action is sent to the LCD to be displayed to the User. For example, a user might say something along the lines of “what is the weather”. The process will realize that the command concerns displaying the weather and then will access the database which contains the data for the weather. This will then be pushed to the display for viewing. 2.4 Software The system will be woken up by the Arduino constantly polling for a person to come within a specified distance of it. This will be written in C and follow the following flow in Figure 6.

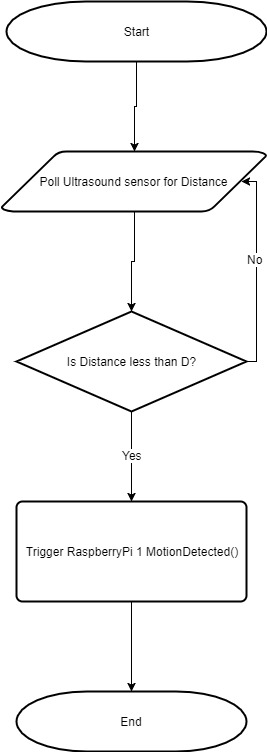

Figure 6: Flow of Motion Detection
Once the system has woken up a portion of java code is used control and organize the display using setting stored in a MySQL database.
Figure 7: Class Diagram for Screen Initialization
The first table in the database will store the user’s preferred settings through a unique primary key SettingID, their location and an enumeration corresponding to a preferred combination of modules. The second table contains information for preset LED lighting combinations. The last table contains keywords for the voice command to recognize and the corresponding command.

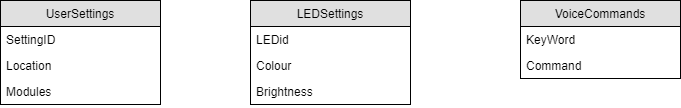

Figure 8: Tables to be Stored in Database
Rounding out our software is a portion of java code to handle voice commands. It will poll for a command then using keywords it will identify the command and execute.

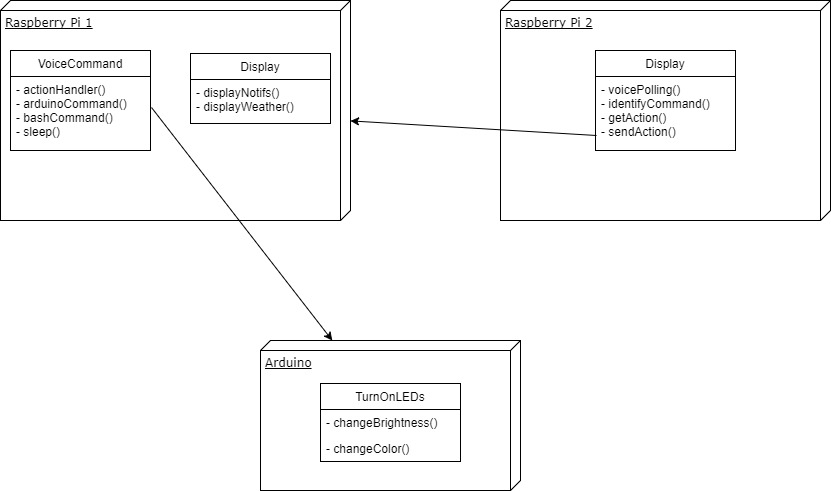

Figure 9: Class Diagram of Voice Control

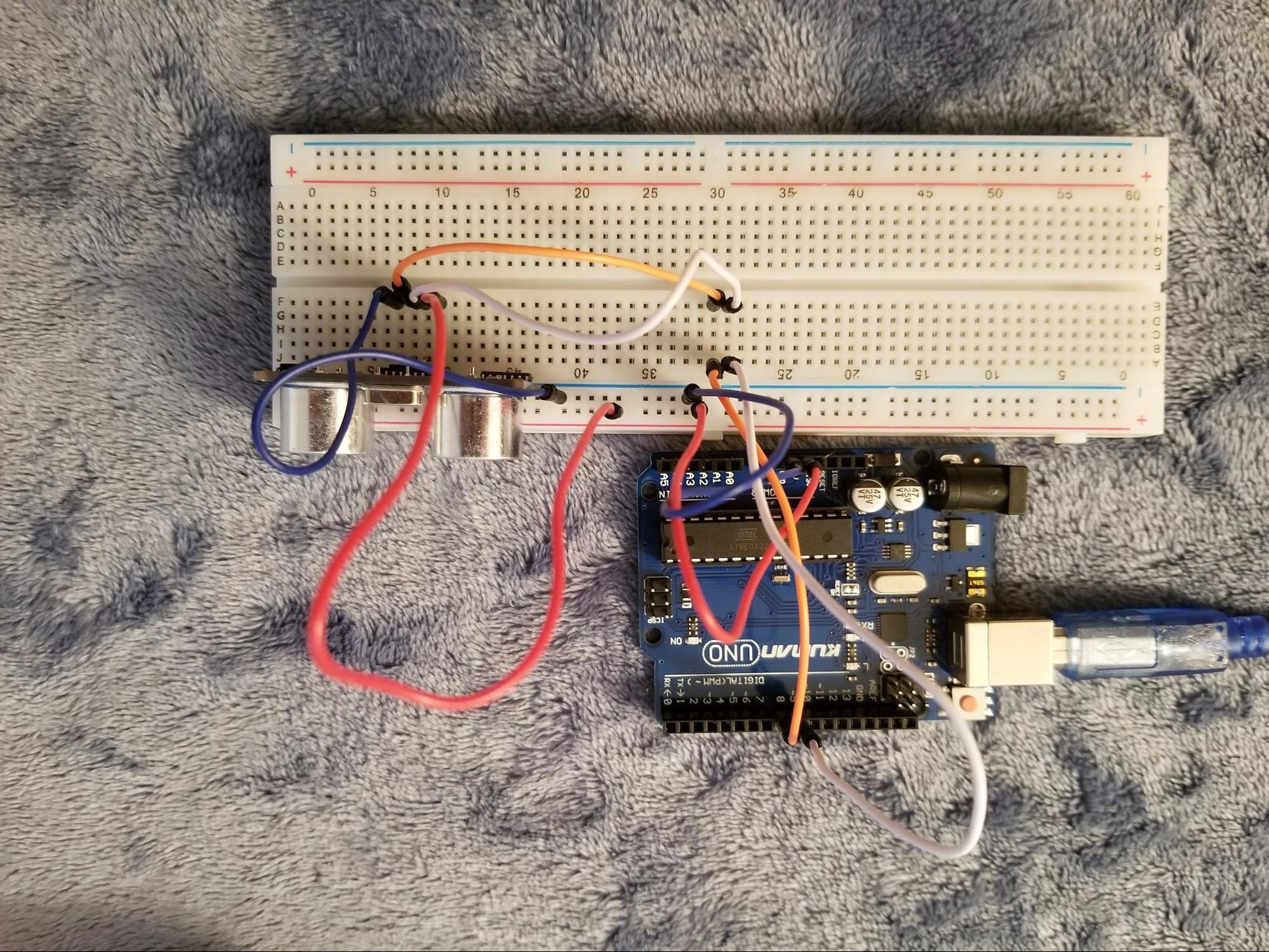

2.5: Hardware/Testing As seen below, the ultrasonic sensor is connected to the Arduino first using the breadboard in a manner that will allow us to test the distances it can detect. The trig pin on the sensor (Arduino IO port 8) is set to its high state for a few microseconds which will send out a sonic burst which is received through the echo pin (Arduino IO port 9). We will receive a value in microseconds on IO port 9 which indicates the time the sound traveled to its target and back. Multiplying this value by the speed of sound will give us double the distance to the target.
2.6: Communication Protocols Communication between the Arduino and one of the Raspberry PIs will happen using serial through the USB cable at 9600 bps. The Raspberry Pi will use the Serial Python library to receive and decode the data. For instance, sending the detected distance using the ultrasound sensor from the Arduino to the Raspberry Pi will send the number as an integer in binary bit by bit at 9600 bps over the USB cable. Communication between both Raspberry Pis will use the UDP protocol. One Raspberry Pi will encode the data in JSON and send it in UDP packets to the other Pi to be decoded and used. If we are sending an object created from a complex class, we have to first define a default method for encoding, we will encode it as a dictionary for our purposes. We then receive it on the other Raspberry Pi using the UDP protocols and decode it back into the object it was sent as. For example: If we have a Weather class class Weather: 'Simple weather class to send and display weather data' def _init_(self, temperature, forecast):
self.temperature = temperature Self.forecast = forecast We then have to define a default JSON encoding method: def defaultJSON(object): return object.dict This converts the object to a dictionary which can easily be sent and decoded by the other Raspberry PI. Testing Processes: 1- Test ultrasonic distances and required detection distance 2- Test LCD display using Arduino, making sure to place LCD behind mirror and re-test 3- Review JSON protocols for data transfer between RPI1, RPI2, and Arduino 4- Install and implement voice control interface 5- Review JSON protocols for data retrieval on RPI1 from Android phone using Pushbullet API 6- Review JSON protocols for data retrieval on RPI1 from online weather database
