Deck Hand

What is it?

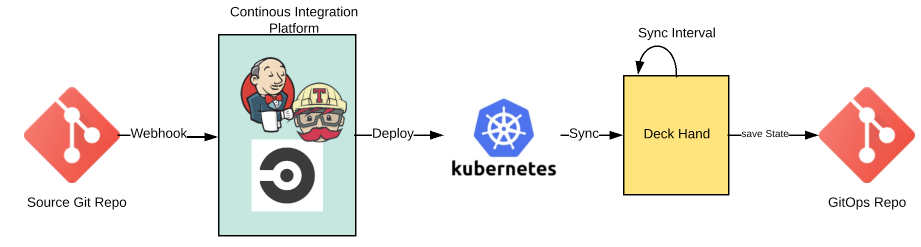

Deck Hand is an application that will save mutable kubernetes resources states such as Deployments, StatefulSets, and DaemonSets into kubectl compliant files to a git repo. The objective is to save the current k8s mutable state to re-create a cluster in case of disaster, replication or any other need.

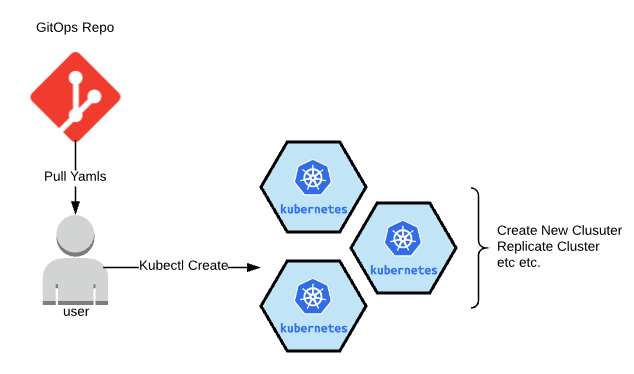

Then @ later time

ENV VARS

The Application can be configured using env vars. Each ENV var is prefixed with DECK_* Current ENV Vars:

ENV Var Name	Type	Default	Required	Comment
DECK_GIT_REPO	string	nil	✔	Git Repo you want to save states to
DECK_SYNCINTERVAL	string	30s	❌	Must be valid go time parse duration format https://golang.org/pkg/time/#ParseDuration
DECK_CLUSTER_NAME	string	dev	❌	cluster name you want to save under
DECK_USE_REPLICA_SETS	bool	F	❌	If you want to save replica sets as well (not recommended)
DECK_SSH_KEY	string	nil	✔ (sort of)	SSH Private key you want to use to connect to git repo
DECK_GIT_USER	string	nil	❌	Git username you will use if using https git
DECK_GIT_PASSWORD	string	nil	✔ (sort of)	Git password if using https git

Getting Started

We will assume you have a cluster running (like minikube , or docker-k8s)

A) If using SSH (recommended) for git:

1. Create and associate a SSH key for your git repo by following this guide HERE

2. Next Add that key as a k8s secret:

   kubectl create secret git-ssh-key --from-file=[location if your ssh key private key]

3. Edit the following builds/deployments.yaml to fit your needs:

        apiVersion: apps/v1
        kind: Deployment
        metadata:
          name: deckhand
          labels:
            app: deckhand
        spec:
          replicas: 1
          selector:
            matchLabels:
              app: deckhand
          template:
            metadata:
              labels:
                app: deckhand
            spec:
              containers:
                - name: deckhand
                  image: nfons/deckhand:latest
                  ports:
                    - containerPort: 8080
                  env:
                    - name: DECK_GIT_REPO
                      value: [[ YOUR SSH GIT REPO... i.e git@github.com:nfons/deckhand-example.git ]]
                    - name: DECK_SSH_KEY
                      valueFrom:
                        secretKeyRef:
                          name: git-ssh-key
                          key: [[ NAME OF YOUR SSH KEY FILE ]]


Note: Ensure Your DECK_GIT_REPO is the ssh format (i.e git@(yourhost)

B) If using HTTPS:

Ideally you would want to store the git username and password as secrets, but simplicity we will disregard that.

3. Edit the deployment yaml file:

        apiVersion: apps/v1
        kind: Deployment
        metadata:
          name: deckhand
          labels:
            app: deckhand
        spec:
          replicas: 1
          selector:
            matchLabels:
              app: deckhand
          template:
            metadata:
              labels:
                app: deckhand
            spec:
              containers:
                - name: deckhand
                  image: nfons/deckhand:latest
                  ports:
                    - containerPort: 8080
                  env:
                    - name: DECK_GIT_REPO
                      value: [[ YOUR SSH GIT REPO... i.e git@github.com:nfons/deckhand-example.git ]]
                    - name: DECK_GIT_USER
                      value: [[ YOUR USER NAME ]]
                    - name: DECK_GIT_PASSWORD
                      value: [[ YOUR PASSWORD ]]


---

4. kubectl create -f builds/deployment.yaml

5. Profit! After a short delay, you should start seeing your k8s state synced with your git repo (Take a look at the example repo: here to view ops repo structure)

6. Add Some new deployments, after a short delay, you will see that deployment also synced to your git repo

Why is K8s the source of truth instead of Git Repo?

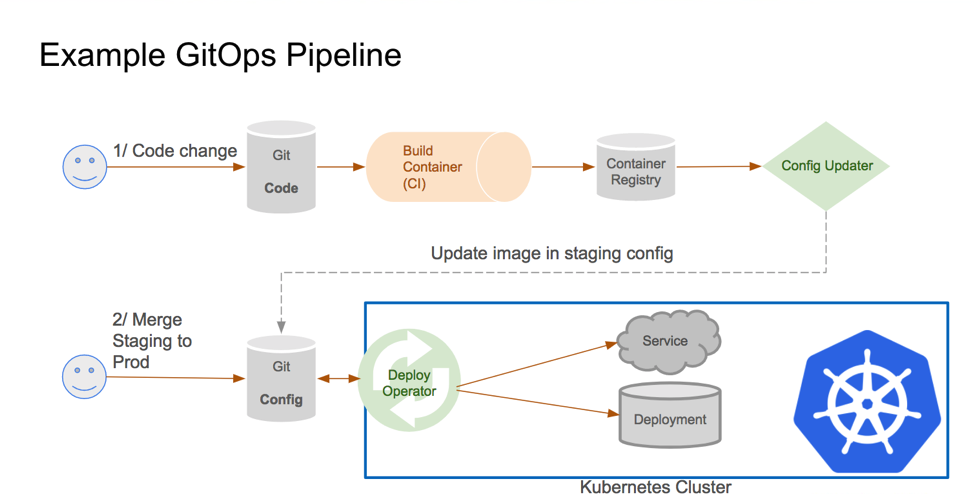

DeckHands approach is to assume k8s as the source of truth. Traditional GitOps (or rather most common) assumes Git repo to be the source of truth.

This approach has some draw backs for certain teams:

• Current CI/CD pipelines need to be altered to be based on the config updating logic

• Need pipelines for all resources. even one-off resources like a vendor deployment

• False source of truth. If resources get updated outside of pipeline (i.e via developer kubectl) resource state in k8s defers from git repo
