API Documentation

This API was built using Java and Spring Boot. Below is the information on how to set up and run it.

Endpoints

Contracts

GET /contracts This endpoint returns an array of contracts with this schema:

{
    id: number,
    description: string,
    payload: Array<Resource>,
    originPlanet: string,
    destinationPlanet: string,
    value: number,
    pilot: Pilot,
    resourcesTotalWeight: number
}

GET /contracts/:id This endpoint returns a contract with this schema:

{
    id: number,
    description: string,
    payload: Array<Resource>,
    originPlanet: string,
    destinationPlanet: string,
    value: number,
    pilot: Pilot,
    resourcesTotalWeight: number
}

GET /contracts/open This endpoint returns an array of open contracts with this schema:

{
    id: number,
    description: string,
    payload: Array<Resource>,
    originPlanet: string,
    destinationPlanet: string,
    value: number,
    pilot: Pilot,
    resourcesTotalWeight: number
}

POST /contracts This endpoint creates a contract by sending the following schema as request body:

{
    description: string,
    payload: Array<Resource>,
    originPlanet: string,
    destinationPlanet: string,
    value: number,
    pilot: {
		id: number
	},
    resourcesTotalWeight: number
}

PUT /contracts/accept/:id This endpoint accepts a contract and returns a message with this schema:

{

message: string

}

PUT /contracts/execute/:id This endpoint executes a contract and returns a message with this schema:

{

message: string

}

Pilots

GET /pilots This endpoint returns an array of pilots with this schema:

{
    id: number,
    pilotCertification: string,
    name: string,
    birthDate: Date,
    credits: number,
    locationPlanet: string,
    age: number
}

GET /pilots/:id This endpoint returns a pilot with this schema:

{
    id: number,
    pilotCertification: string,
    name: string,
    birthDate: Date,
    credits: number,
    locationPlanet: string,
    age: number
}

POST /pilots This endpoint creates a pilot by sending the following schema as request body:

{
    pilotCertification: string,
    name: string,
    birthDate: Date,
    credits: number,
    locationPlanet: string
}

Reports

GET /reports/weightmovimentation This endpoint returns the total weight in tons of each resource sent and received by each planet with this schema:

{
	received: {
		food: number,
		water: number,
		minerals: number
	},
	sent: {
		food: number,
		water: number,
		minerals: number
	}
}

GET /reports/pilotspercentages This endpoint returns the percentage of resource type transported by each pilot with this schema:

{
    name: string,
    minerals: string,
    food: string,
    water: string
}

GET /reports/transactions This endpoint returns the percentage of resource type transported by each pilot with this schema:

{
    value: number,
    transactionDescription: number
}

Resources

GET /resources This endpoint returns an array of resources with this schema:

{
    id: number,
    name: number,
    weight: number,
    contract_id: number
}

GET /resources/:id This endpoint returns a resource with this schema:

{
    id: number,
    name: number,
    weight: number,
    contract_id: number
}

POST /resources This endpoint creates a contract by sending the following schema as request body:

{
    name: number,
    weight: number,
    contract_id: number
}

Ships

GET /ships This endpoint returns an array of ships with this schema:

{
    id: number,
    fuelCapacity: number,
    fuelLevel: number,
    weightCapacity: number,
    pilot: Pilot
}

GET /ships/:id This endpoint returns a ships with this schema:

{
    id: number,
    fuelCapacity: number,
    fuelLevel: number,
    weightCapacity: number,
    pilot: Pilot
}

POST /ships This endpoint creates a ship by sending the following schema as request body:

{
    fuelCapacity: number,
    fuelLevel: number,
    weightCapacity: number,
    pilot: Pilot
}

PUT /ships/refuel/:id This endpoint refuels a ship by sending the following schema as request body:

{
	value: number
}

Travel

PUT /travel/from/:idFrom/to/:idTo/withpilot/:idPilot This endpoint does a free travel by passing the origin planet id, th destination planet id and the pilot id, then, if everything goes well, a success message is returned with the following schema :

{

message: string

}

Running the application

In order to run the application you will need the following tools:

Java JDK 11 or newer

SpringToolSuite IDE 4 Eclipse version (you may be able to run the solution using another IDE such as Eclipse, IntelliJ IDEA or Visual Studio Code, but it's strongly recommended that you use STSTool4)

Postman API Client (not required, just good for testing)

MySql (version 10.4.22-MariaDB is recommended, because is the one that I used)

Tip: make mysql installation easier and quicker by using Xampp

Starting the aplication:

Assuming that you installed all needed softwares, we can now proceed to executing the application:

1. Clone the project from github using "git clone"

2. Start your MySql instance

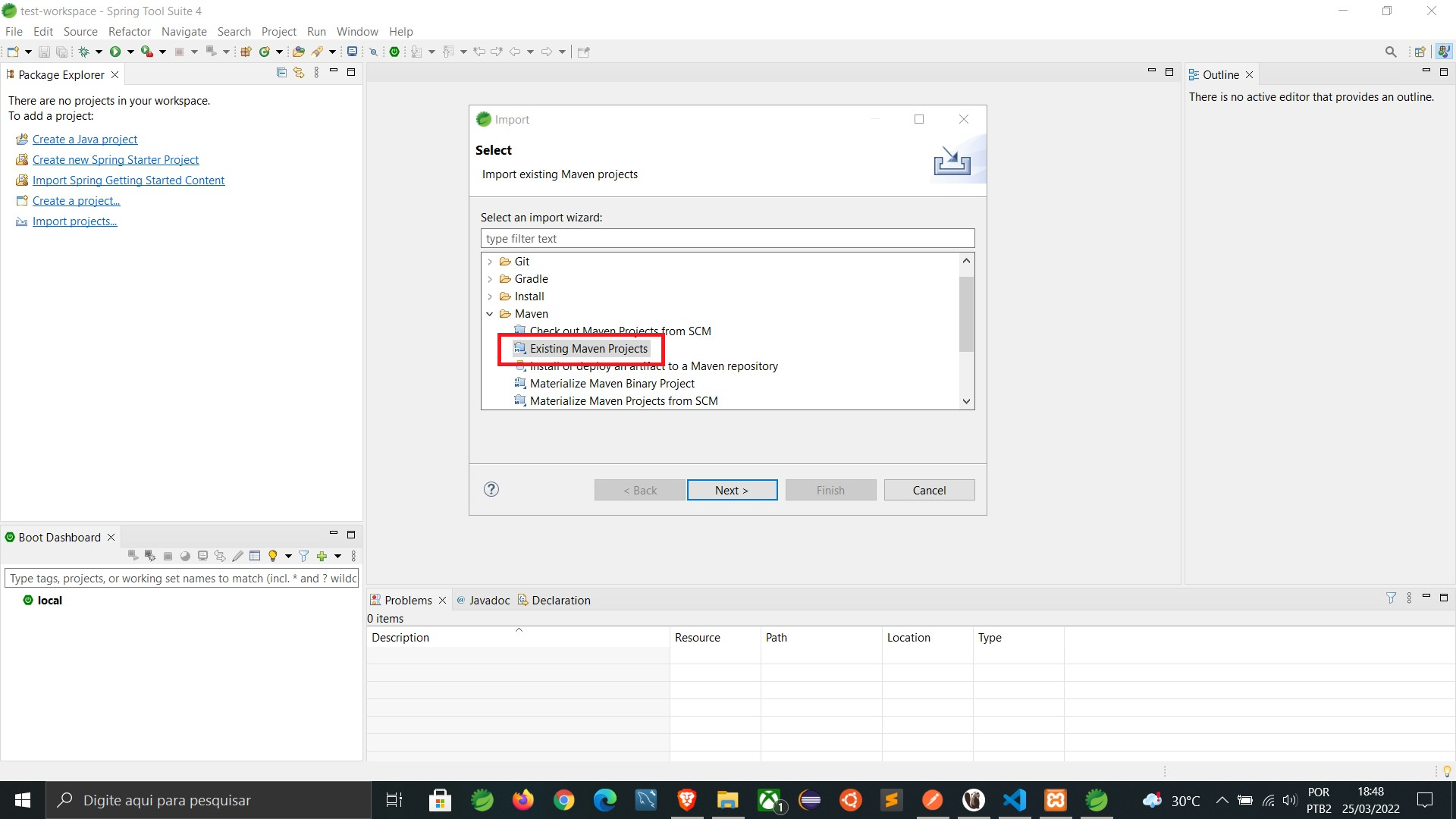

3. Start Spring Tool Suite and import the project using the following path: File -> Import -> Maven -> Existing Maven Projects

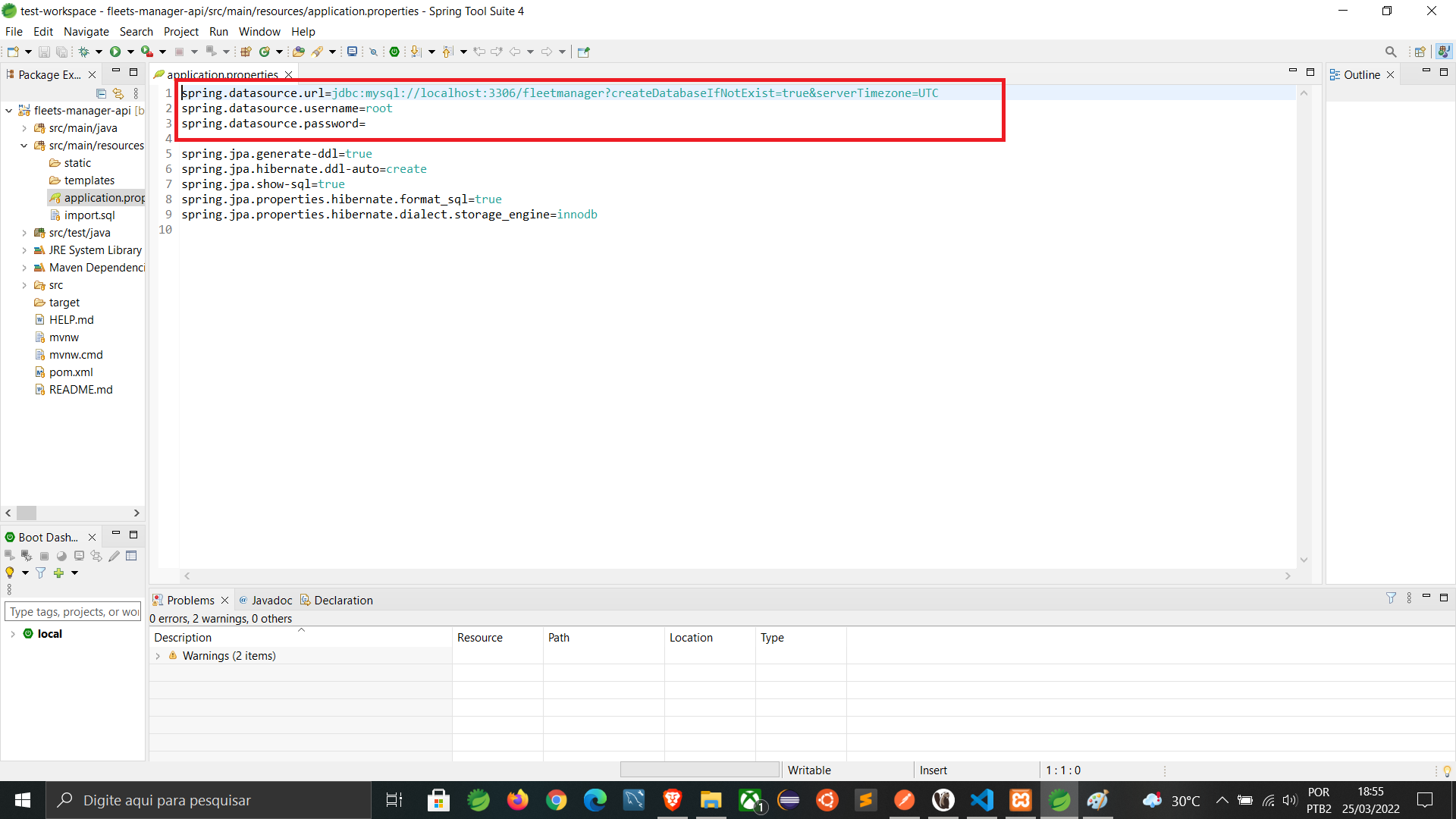

3. Open the file /fleets-manager-api/src/main/resources/application.properties and setup your MysSql connection credentials

4. Now all you need to do is run the application by doing the following:

And voilà! Now the application should be up and running. Now you can start to use the endpoints

Using the application's functionalities

1. You can add pilots and their ships to the system by using these endpoints: POST /pilots; POST /ships
2. Publish transport contracts by using this endpoint: POST /contracts
3. Freely travel between planets by using this endpoint: PUT /travel/from/:idFrom/to/:idTo/withpilot/:idPilot
4. List open contracts by using this endpoint: GET /contracts/open
5. Accept transport contracts by using this endpoint: PUT /contracts/accept/:id, then you can execute it using the endpoin PUT /contracts/execute/:id and the system will make the travel right away and grant credits to the pilot.
6. Register a refill of the fuel using the endpoint: PUT /ships/refuel/:id.
7. Generate reports using the endpoints: GET /reports/weightmovimentation, GET /reports/pilotspercentages and GET /reports/transactions

Notes

1. Every time that the application is started the database is recreated, you can change it at /fleets-manager-api/src/main/resources/application.properties.
2. The file /fleets-manager-api/src/main/resources/import.sql is loaded every time that the system is started and placeholder data is inserted in the database, if it doesn't load automatically for you, you can run it manually.

That's all, folks😁!
