Alan Simpson B00777606
Jordan Gibson B00778369
Liam Riche B00789989
We decided to use GitHub for our project as this was easy to assign tickets so that we would know what everyone is doing and working on.
We had an agile board would use for project management:
The way this works is that a ticket is first opened and assigned for someone to work on then once it has been assigned it is then moved to development section then once it is developed it is then moved to the review stage where the other 2 members of the group review and then either push it up to the master branch or comment on some changes to be made then once it has been finalised it is then moved to the done section where all the completed tickets go. This is how we planned out the development of the project.
You can see the whole preparation, plan, development and testing over at our git hub - https://github.com/JordanGibson/Elevens
From this you will also be able to see the pull requests with all the code we have added as well as the reasons as to why we have chosen to create the project like this
We used maven for our build tool as it's easy to install dependencies
The deck – we decided to go and develop an abstract stack data structure as we felt a stack is the best way to hold a deck as it is first in last out. This way it will make it easier to shuffle the deck as well as keep popping from the top of the deck.

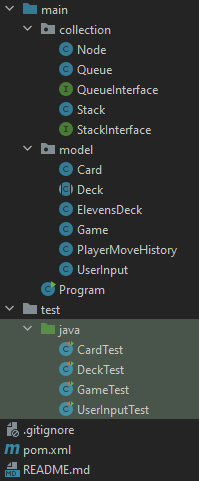

We have separated the project structure into 2 packages:
- collection
- model
The collection package stores all the models used to simulate collections - stacks and queues, in addition to a Node (an item in the aforementioned collections).
The model class stores the models which we use for the game, that being Card, Deck, ElevensDeck, Game, PlayerMoveHistory and UserInput.
Cardsimply stores the value, suit and rank of a card.Deck (abstract class)stores a stack of cards, with some additional features which can be performed on a deck (drawing a card for example)ElevensDeckextendsDeckand adds features specific toElevens, such as validating a player move, or generating a valid hintGamecontains the main logic for playing a game ofElevens- main features such as starting a game, displaying the menu, making a turn, starting an automated playthrough etc.PlayerMoveHistorystores a collection ofPlayerMoveHistoryEntrys, which is later used to replay the gameUserInputis used for input validation and parsing
The only Java file not contained within a package is Program.java which was left out by design as it is the file which accesses all of the other classes. It is the one used to run the game.
The testing – we have done a couple tests such as DeckTest, InputTest and a general GameTest all of these are their own classes with a test collection in the project so that you are able to look at the different methods with their own tests in the project.
the user input tests are used to find problems in the users inputs into the game (e.g. picking pairs and triplets) has 4 test categories
these tests cover:
- ensuring a user input will return one of 9 different enums for informing the user of correct inputs (10 tests)
- only sets first and second card but not the third card when valid2card enum is returned (1 test)
- sets all 3 cards if valid3card enum is returned (1 test)
- Sanitise inputs from user to remove all spaces and commas and raises input to uppercase (13 tests)
the deck test tests cover cases to show that the deck class functions as a normal deck of cards would. has 4 test categories in it
these tests cover:
- Deck has 52 cards in it (no jokers, we don't like jokers)
- when drawing a card it removes one from the stack and doesn't take more or less than 1 card.
- deck does not have duplicate cards in it (a full deck of 52 king of clubs does not make the game play well)
- deck is shuffled on initialisation (makes each game different)
there is only one test in card test, which checks to make sure the tostring() method correctly returns the name of the card chosen.
